Engineering 5865 Digital Systems

General Information

Lecture time:(Tue, Thur) 14:30-15:45
Lecture room:EN-1001
Office hour: (Tue, Thur) 15:45-16:45
Lab(EN-3065):Thursday 9:00-12:00
Course Outline | Problem Sets | Course Notes

Bulletin Board

[2012.02.27]: Sample answers for the first three assignments are available through the following links:

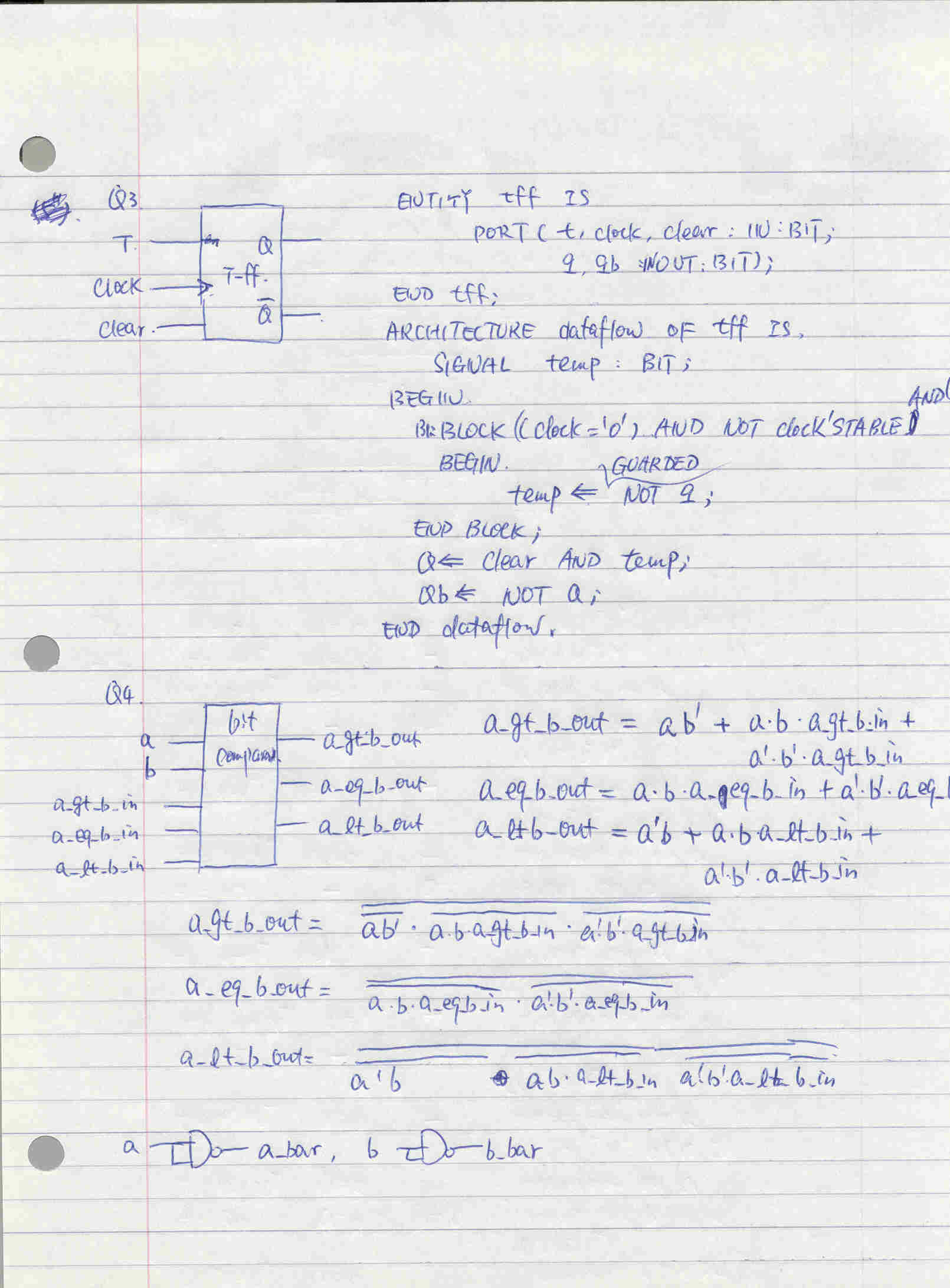

Assign1: p1, p2, p3, p4, p5, p6, p7, p8, p9, p10.
Assign2: p1, p2, p3, p4, p5, p6, p7, p8, p9, p10, p11.
Assign3: p1, p2, p3, p4, p5, p6, p7, p8, p9.

[2012.02.27]: Sample Midterm Exam:

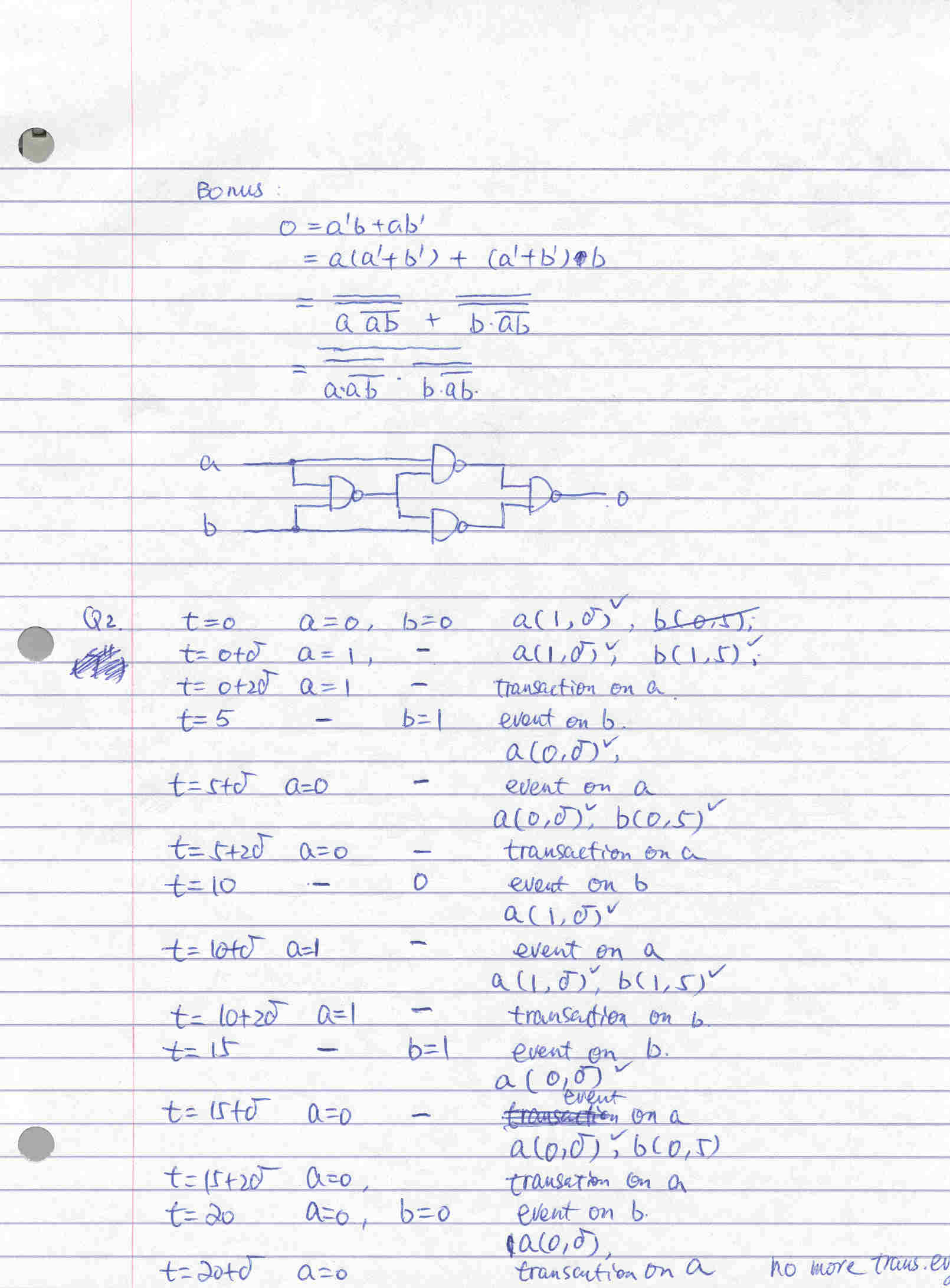

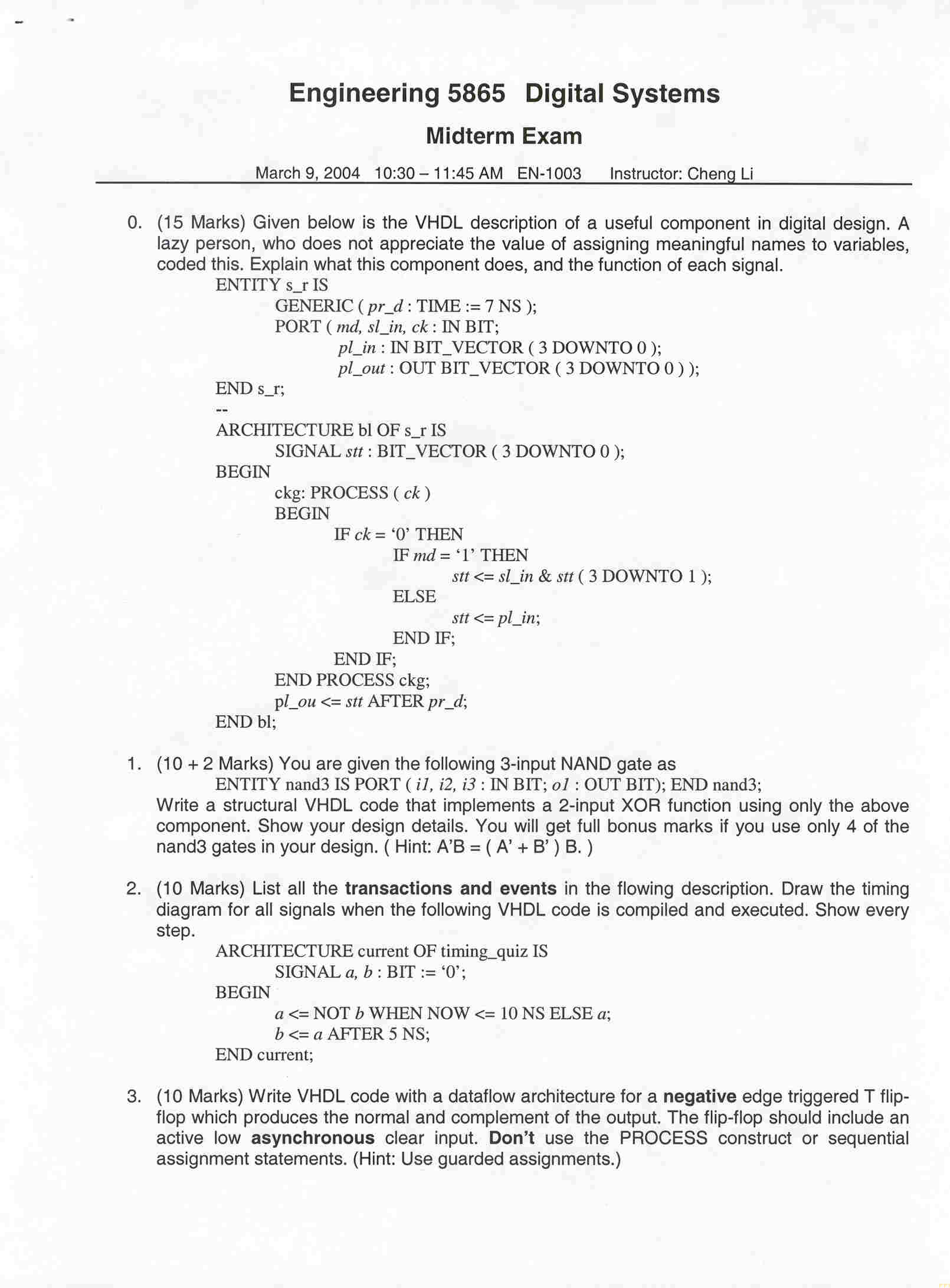

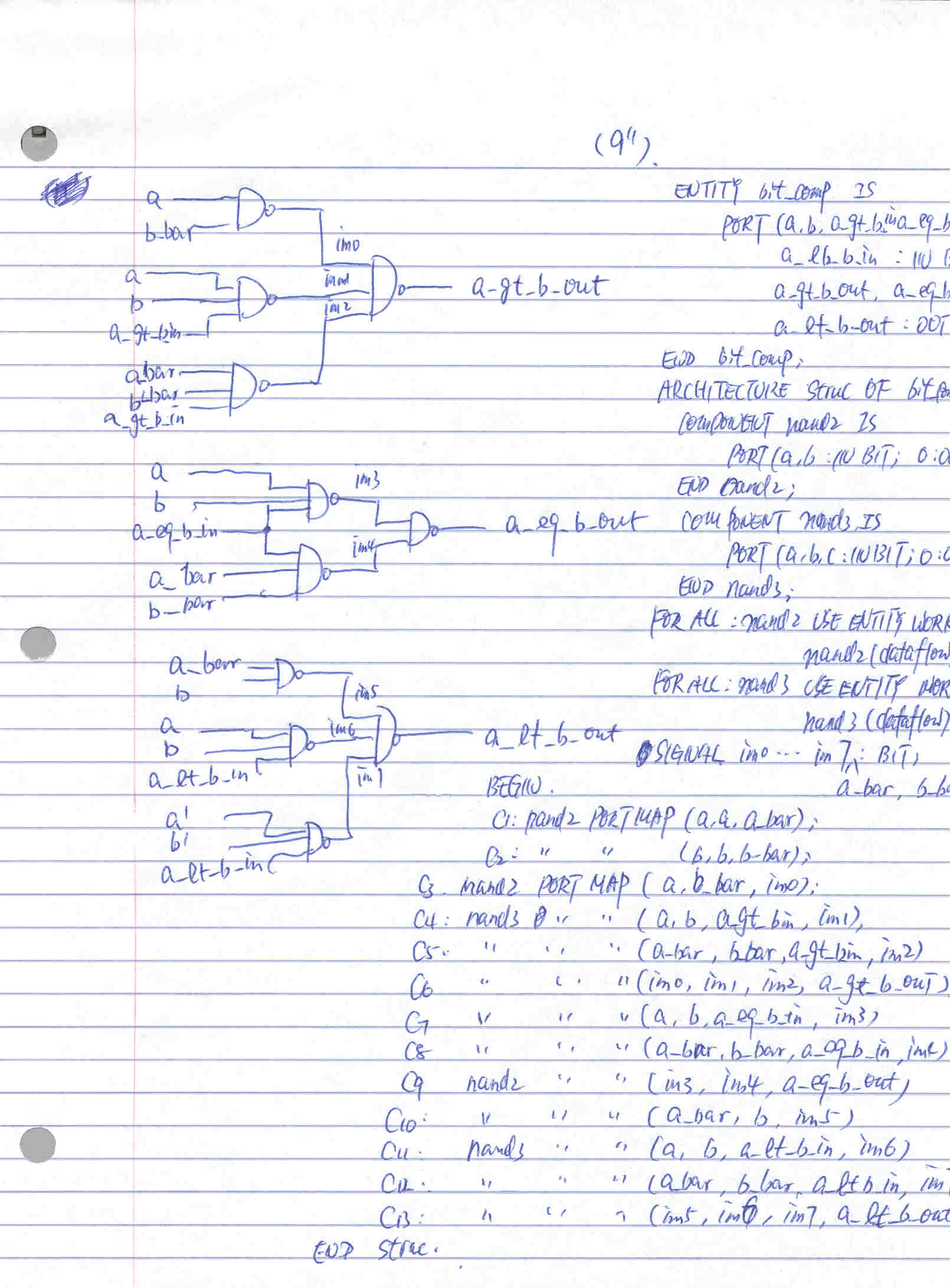

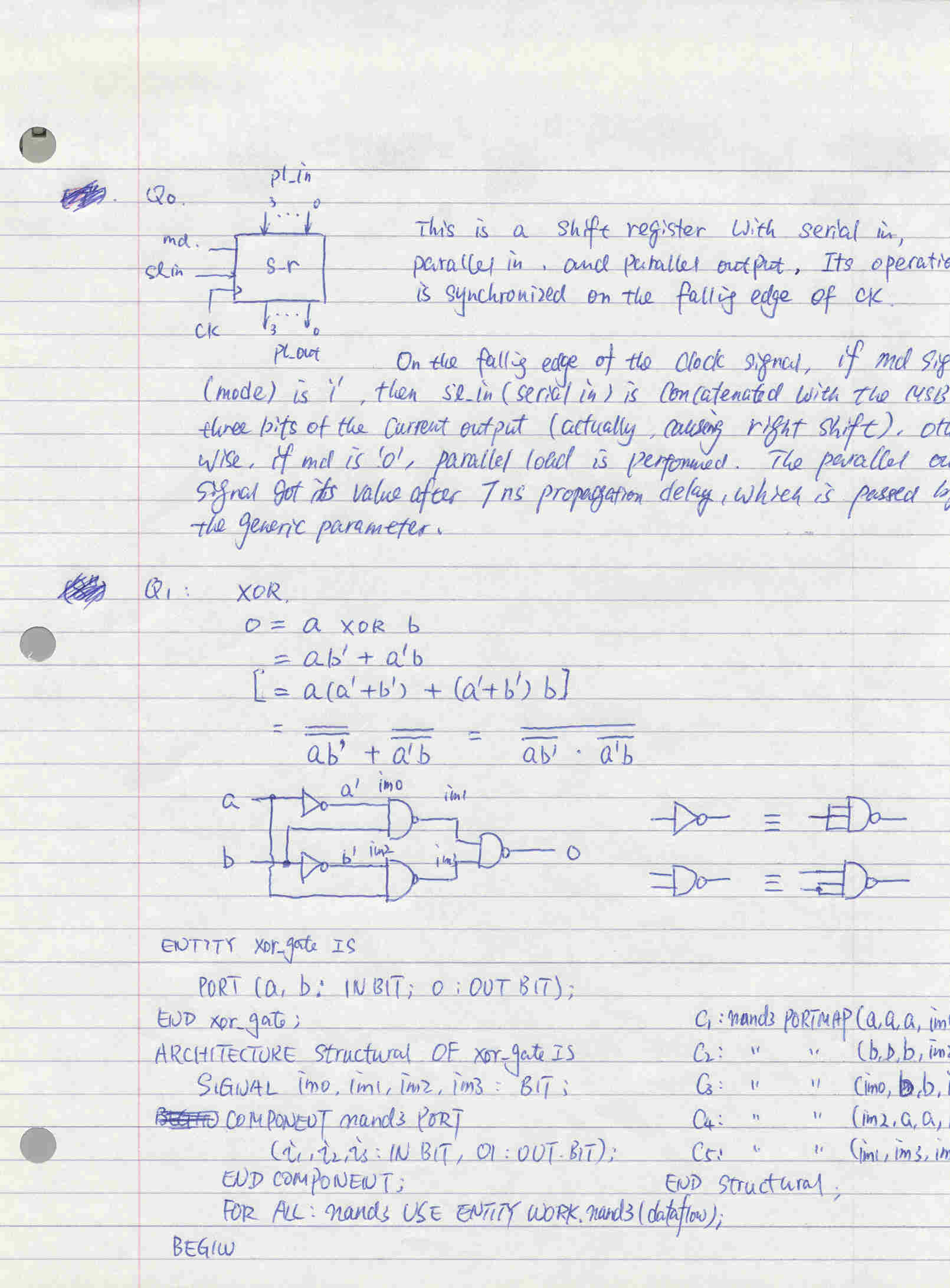

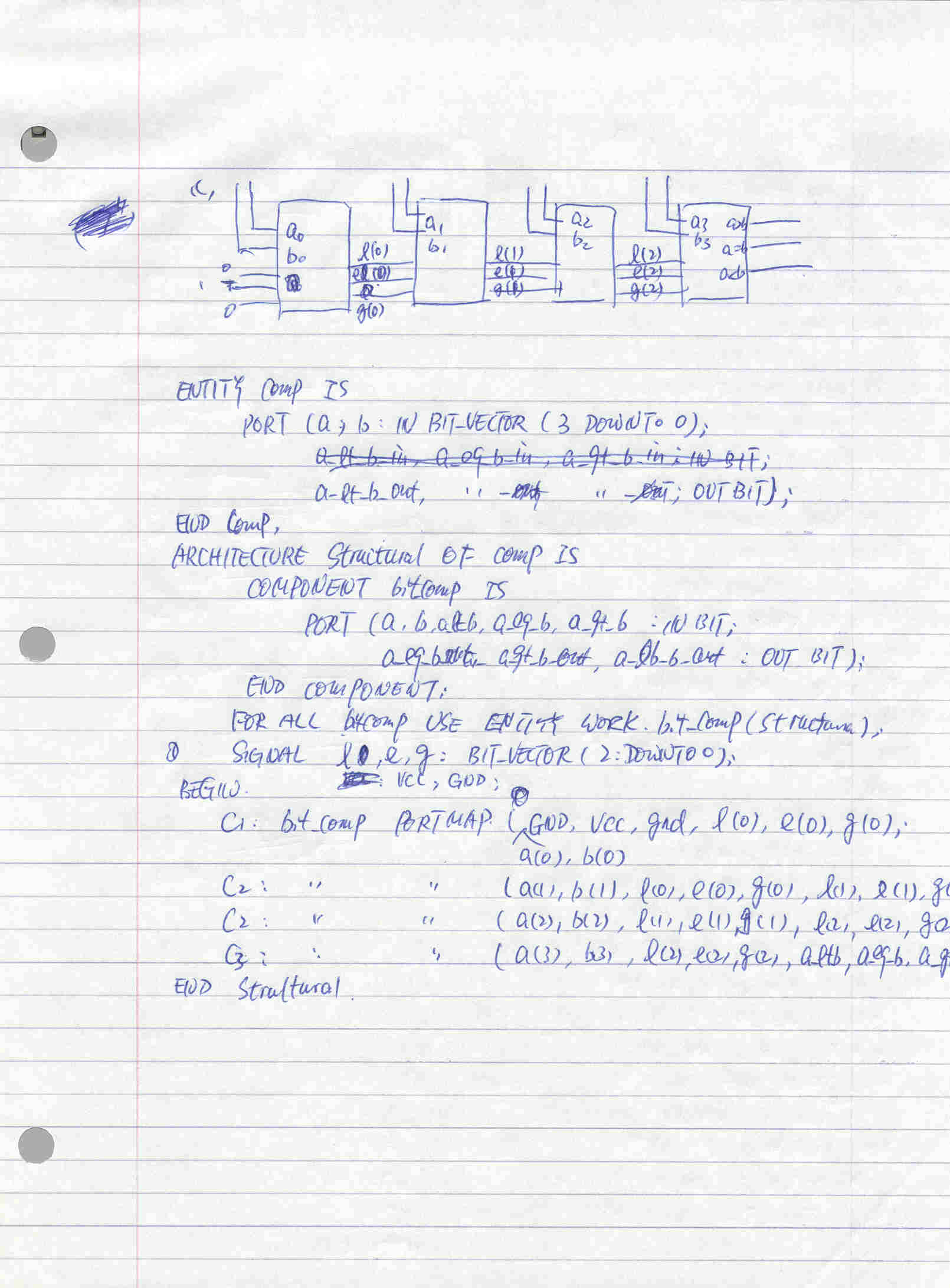

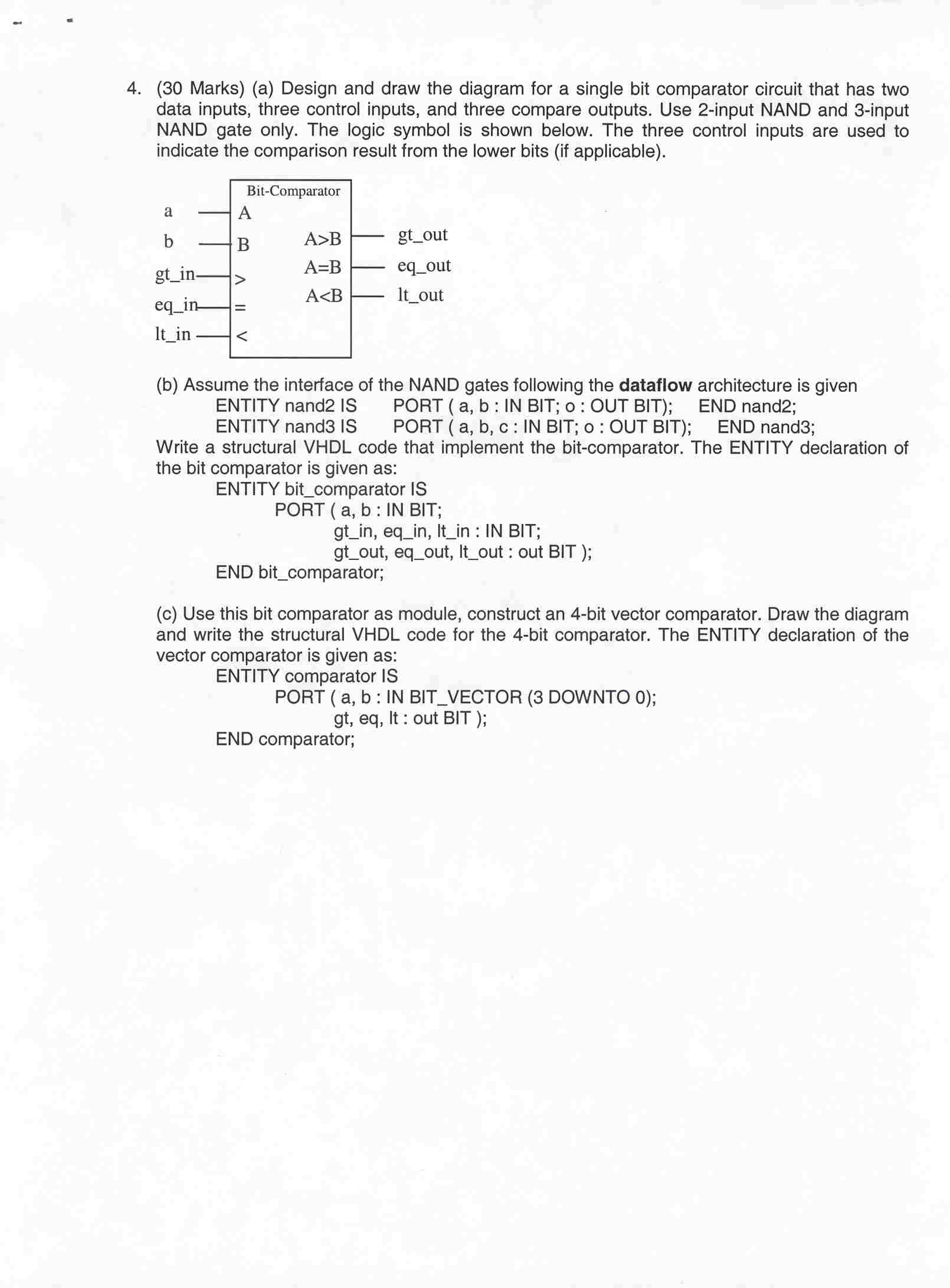

Midterm 2004: p1, p2, p3, p4, p5, p6, p7.

[2012.03.31]: Sample answers for assignments 4 is available through the following links:
Assign4: p1, p2, p3, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p15.

[2012.03.31]: The format and weight of the final exam (tentative) is:
True/False .......................... 10
Multiple choice ...................... 5
Short Answer/Calculation/Analysis ... 45
Design .............................. 50
----------------------------------------
Total............................... 110

[2012.03.31]: Sample final exam questions:
Sample 1: p1, p2, p3.
Sample 2: p1, p2, p3.
Sample 3: Final Exam 2004.

[2012.2.09]: Sample testbench code for file access can be found at click here.

[2012.1.5]: Welcome Back! My office is in EN-4012, and the phone number is 864 8972.

Textbook

C. Roth, Digital Systems Design Using VHDL (2nd Edition), CL-Engineering Publisher, March 2007 (ISBN-10: 0534384625, ISBN-13: 978-0534384623)

Contents

The topics will include, but not limited to the following:
1. Concepts of Digital Logic and Principles of Digital Circuits Design
2. Advanced Minimization Techniques
3. Design of Logic Circuits with Programmable Logic Devices (PLDs, FPGAs)
4. Introduction to ASICs and ASIC Design Methodology
5. Analysis, Modeling and Partitioning for Logic Synthesis and VHDL Coding
6. Constraining Designs, Synthesizing, Simulation and Optimization
7. Design for Testability, Built-In Self-Test, and Fault Tolerance
8. Digital System Reliability
9. Noise and Transmission Line Effects

Evaluation Scheme

Problem Sets(4)0% (Due: Jan. 24, Feb. 16, Mar. 15, Mar. 29)
Labs30%
Mid-term20% (Mar. 1, 2012 (Tentative))
Fianl Exam50%
