DynaFRAM is a complementary software to the FRAM Model Visualizer (FMV). The FMV allows users to build
and visualize FRAM models of any functional system, but most commonly is used to visualize socio-technical
systems. As users of the FRAM will know, an initial FRAM model should represent all the potential ways a system
can function. The FMV can help you visualize your application up to this point.

The next step in a FRAM assessment is to think about the variability. How many of the combinations of the potential
possibilities are plausible? Which variations are used most often? which variations lead to "good" outcomes? which
variations lead to poor outcomes? The answers to these questions are usually not obvious. One way to approach these
questions critically is to start monitoring the functionality of the system each time it is executed. This is also consistent
with the practice of dealing with "work-as-done" vs "work-as-imagined" in the FRAM. We can monitor this variability
as "functional signatures."

Functional signatures can be thought of as a "unique" functional variation that belongs to a specific execution
of the system. Each execution is "unique" in that is belongs to a specific event and moment in time. However, there
may be many similarities between functional signatures and only a few differences. The differences in functional
signatures may offer functional explanations for variability in the outcomes of the system. By collecting/recording
functional signatures of the system, there is an opportunity to compare them and enrich your understanding of how
functional variations affect the overall outcomes of systems you may be trying to manage. Functional signatures are
comparable to instantiations in the current FRAM literature. When I was developing this concept, instantiations were
not explicitly thought of this way - so I developed the term "functional signatures*."

The DynaFRAM software allows users to upload their FRAM models from the original FMV, create an input file of a
specific functional signature or instantiation, then animate the functionality of that specific event over the original
FRAM model.

*Published work on functional signatures.

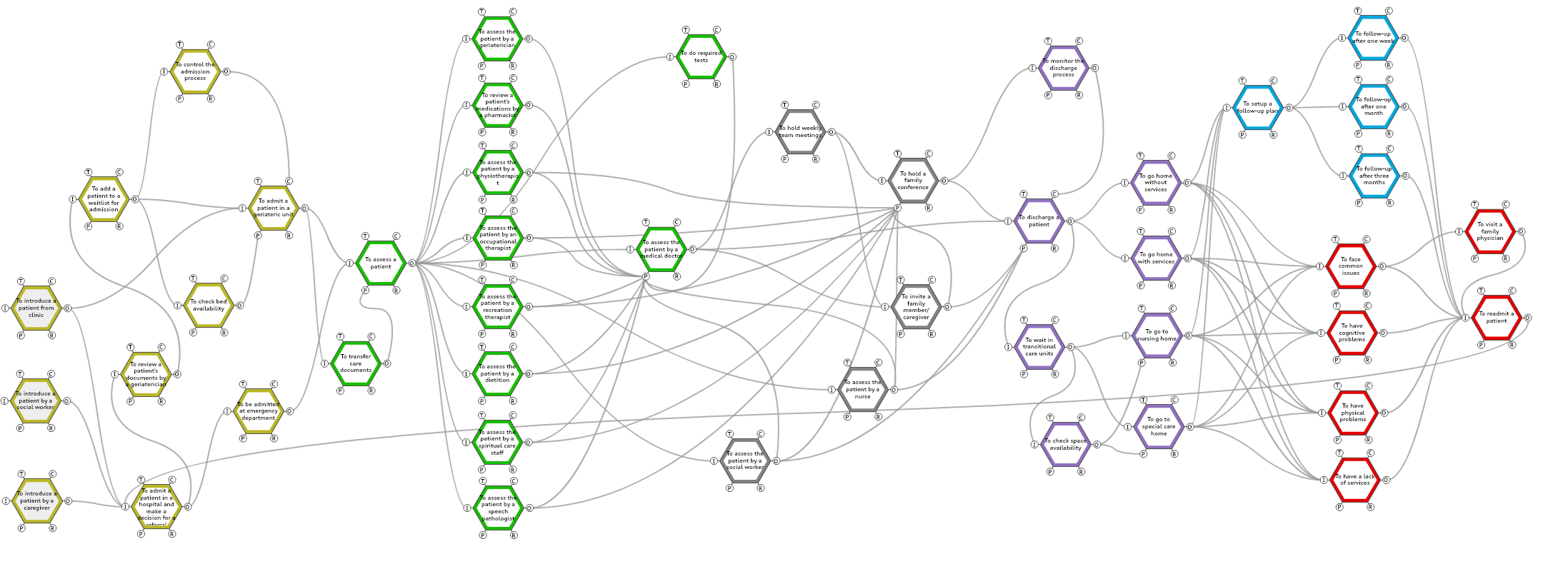

Suppose you had a FRAM model of a healthcare process, as shown below. The FRAM model should describe all of the ways
the system can function to deal with "every" healthcare related issue that this system is responsible for.


If you were to track 1 patient through this process you may see specific outputs of certain functions and
that only a few of those functions became active as this patient was cared for. Below is the functional
signature for that patient. You should note that 1 second = one day of time in this video (it is sped up).

The details of this process are not important at this stage. It is more important that you recognize that another
patient will have a different functional signature as they "pass through" this system. By collecting many functional
signatures there is an opportunity to compare the variability (similarities and differences) in the collection. And also that
this "method" is transferable to many other applications besides healthcare.

Download DynaFRAM

Version 1 and 2 of the DynaFRAM were developed for "in-house" use only. Version 3 of DynaFRAM is being
released for free to the public in the following downloadable link:

Download DynaFRAM V3

* An updated version of the DynaFRAM install file was added Jan. 23, 2023 This should address any issues
experienced with videos saving. It is recommended that you uninstall any prior version of DynaFRAM and install this version.
DynaFRAM is not to be repackaged or resold for any commercial purpose(s).

Back to main page
